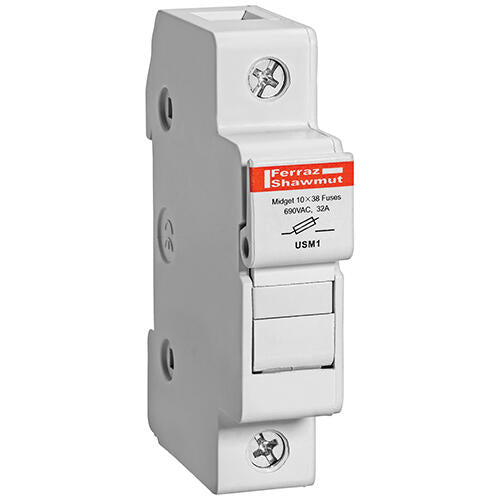

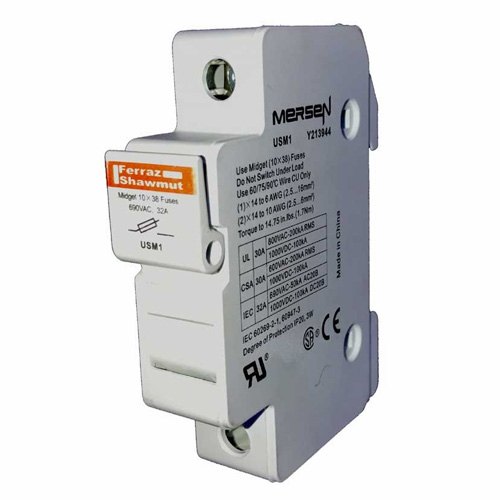

FUSE HOLDER PV 10X38 Mersen UL

For 10x38mm fuses, UL rated for up to 1000VDC. 30 Amp DIN Rail Mount.

Applications: • All circuits up to 600 volts for motors, control circuits, transformers, etc… • DC circuits up to 1000VDC including photovoltaic applications • Non-load disconnec

The dimensions of the Touch Safe Fuse Holder are:

Tall: 77mm

Wide: 17mm

Deep: 59mm

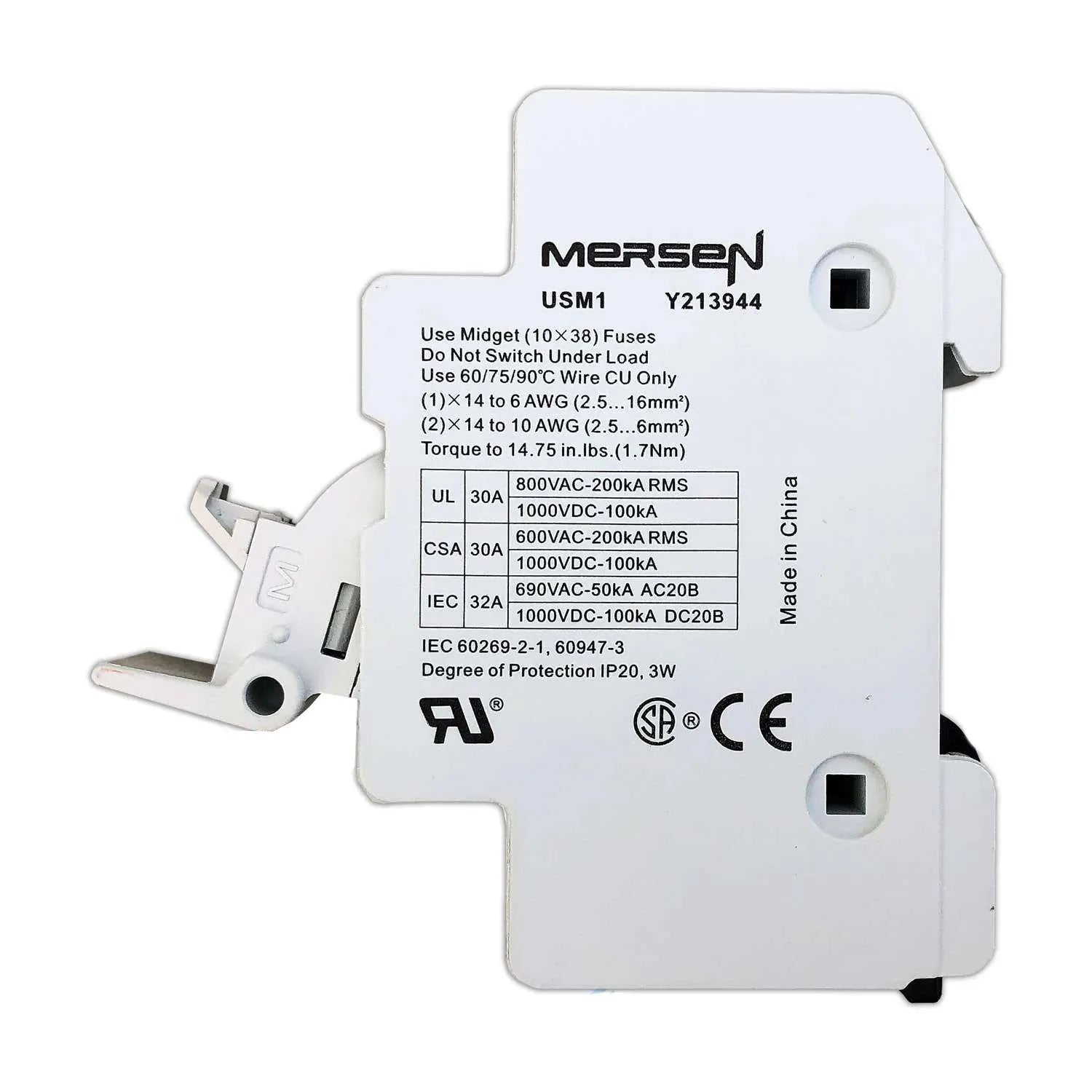

Approvals: • UL Listed to Standard 4248-4 (class CC) and 4248-1 (midget), File E52283 • UL Listed to standard 4248-18 (photovoltaic), File E347822 • CSA Certified C22.2 • IEC 60269-2-1 and 60947-3 Compliant (USM only)

Additional Specifications: Terminal screws: Phillips/slot head Suggested screw torque: 14.75 in-lbs. Wire range: #14 to 6 AWG (2.5 to 16mm2 ) single conductor : #14 to 10 AWG (2.5 to 5.0 mm2 ) dual conductor Wire type: 60/75/90°C solid/stranded copper Connector type: Pressure plate Load-break disconnect: No Environmental: RoHS compliant, lead free Operating temperature: -40° to 85°C Watts loss: 3W or less Flammability rating: UL 94-V0
