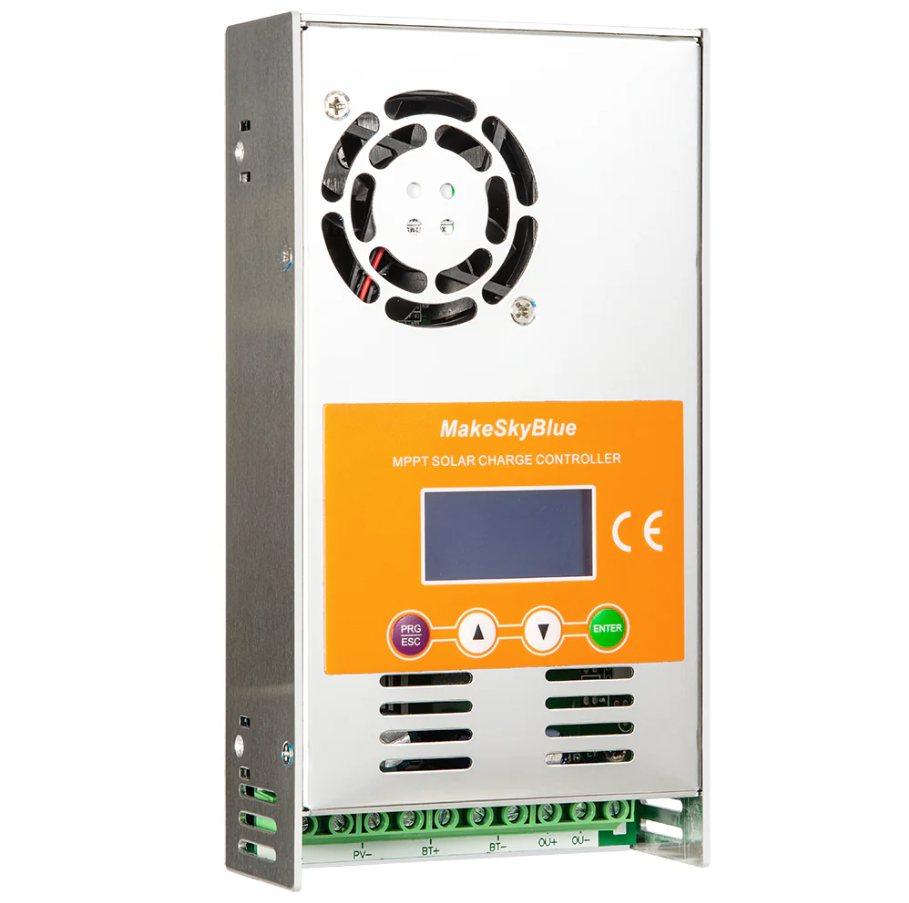

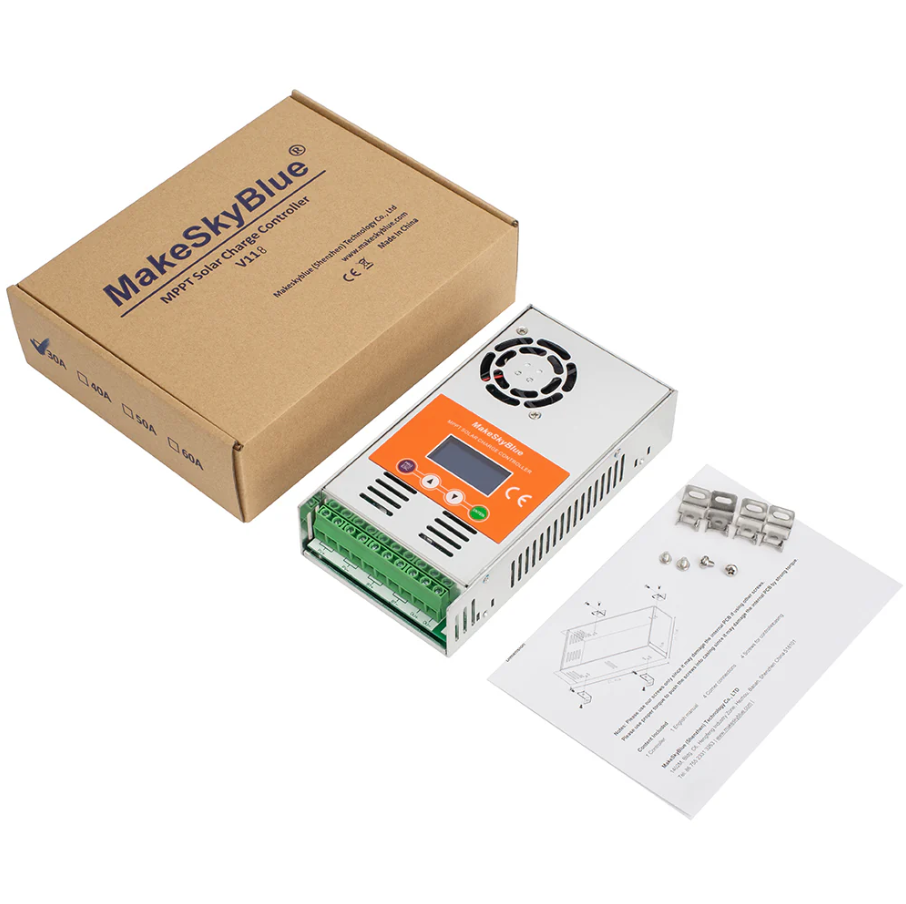

60 AMP V123 MPPT Solar Charge Controller

FEATURED

• Intelligent Maximum Power Point Tracking technology
• Built-in DSP controller with high performance
• Three-stage charging optimizes battery performance
• Multi-function LCD displays
• Suitable for all kinds of battery

INPUT

• Maximum PV Array Power:

1. ≤ 720W Panel for 12V Battery
2. ≤ 1440W Panel for 24V Battery
3. ≤ 2800W Panel for 48V Battery

• PV Array Open Circuit Voltage (Voc):

1. 20V-80V for 12V Battery
2. 37V-105V for 24V Battery
3. 72V-160V For 48V Battery

OUTPUT

• Default charging mode is for lead acid battery
• Set the voltage from 12V-17V for 12V Battery, 24V-34V for 24V Battery, and 48V-68V for 48V Battery

PROTECTION

• Limited current protection: 61A
• Temperature protection: >75℃
• Fan-on temperature: >45℃ Fan-off temperature: <40℃
• Overcharging protection voltage: 15V for 12V battery, 30V for 24V battery, and 60V for 48V battery
