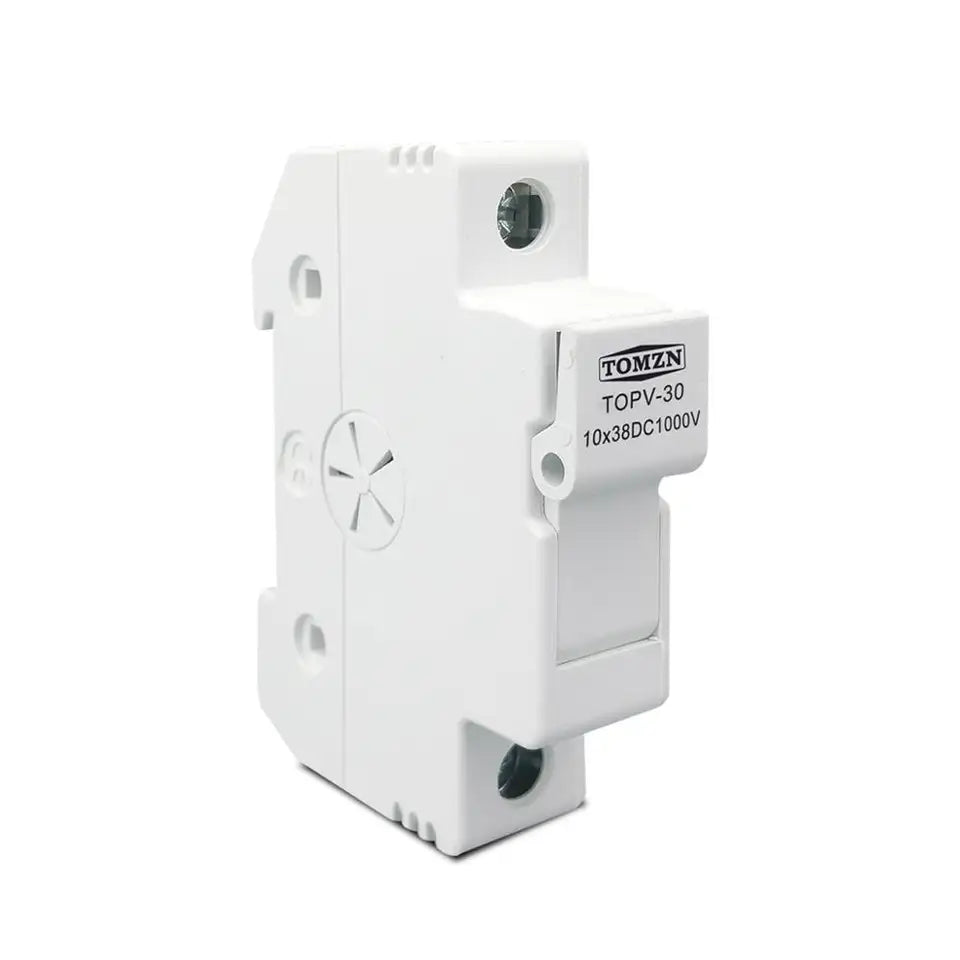

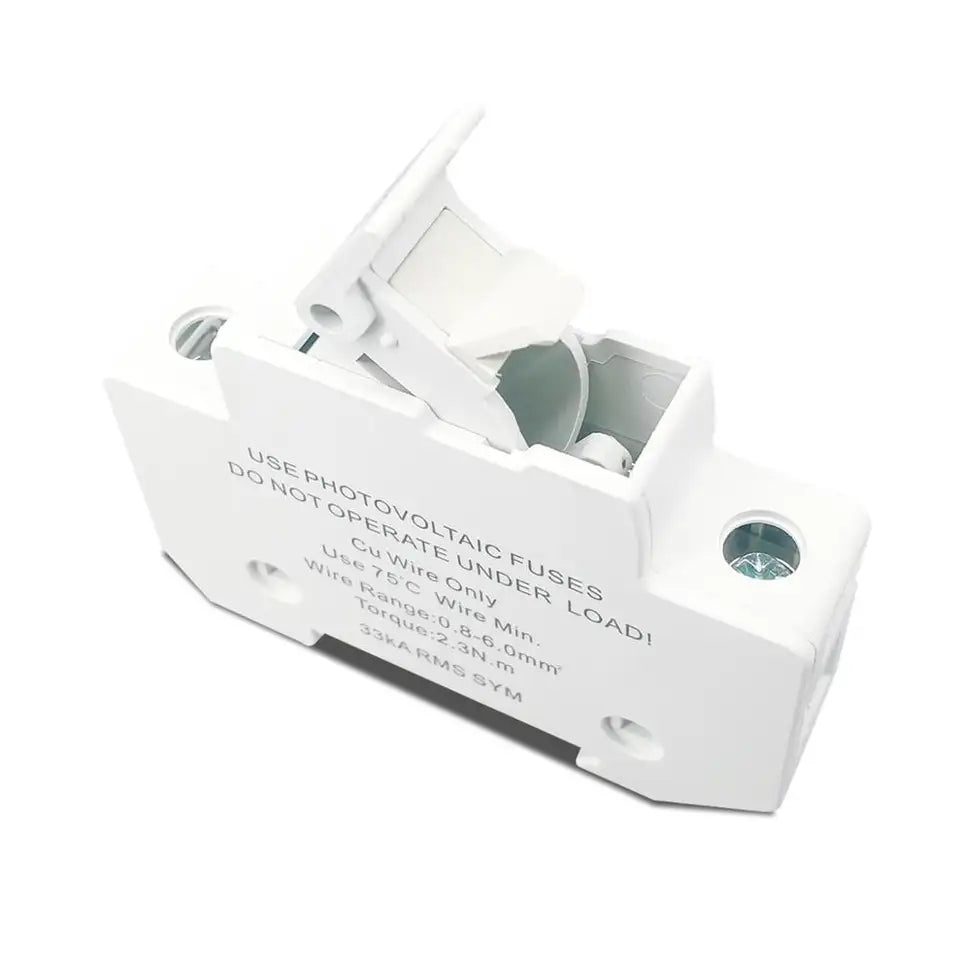

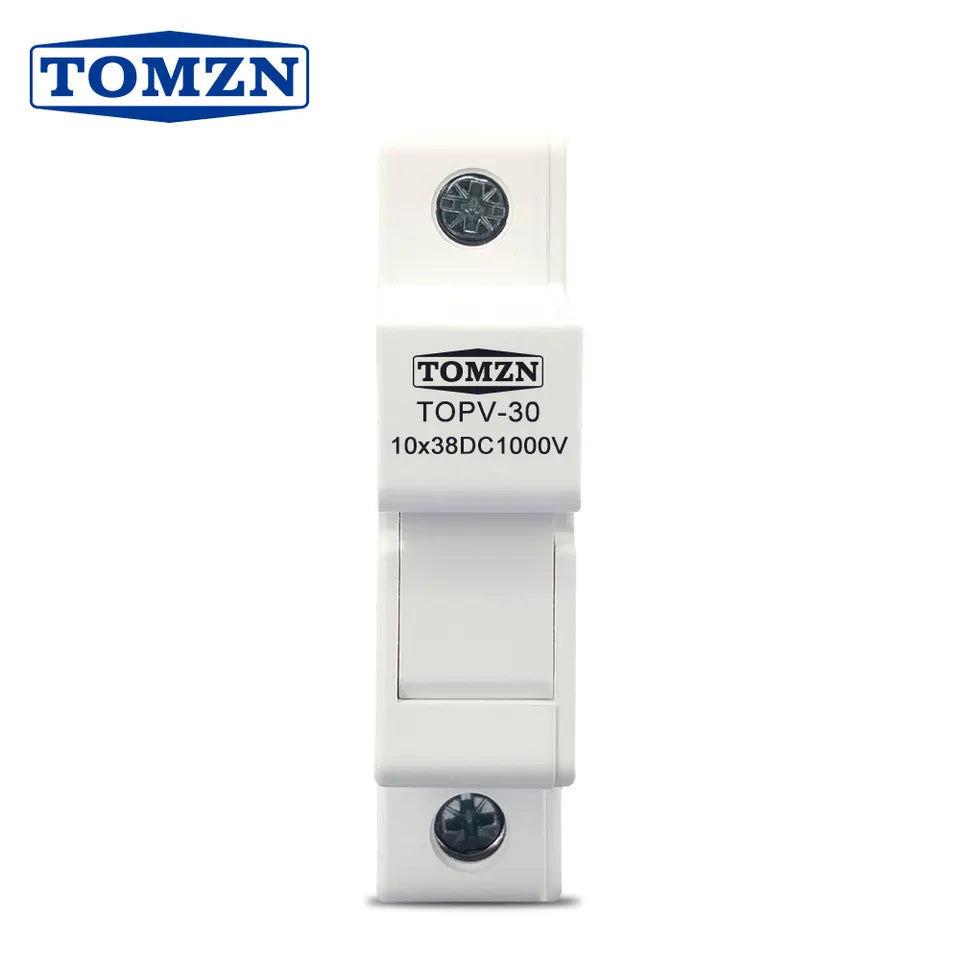

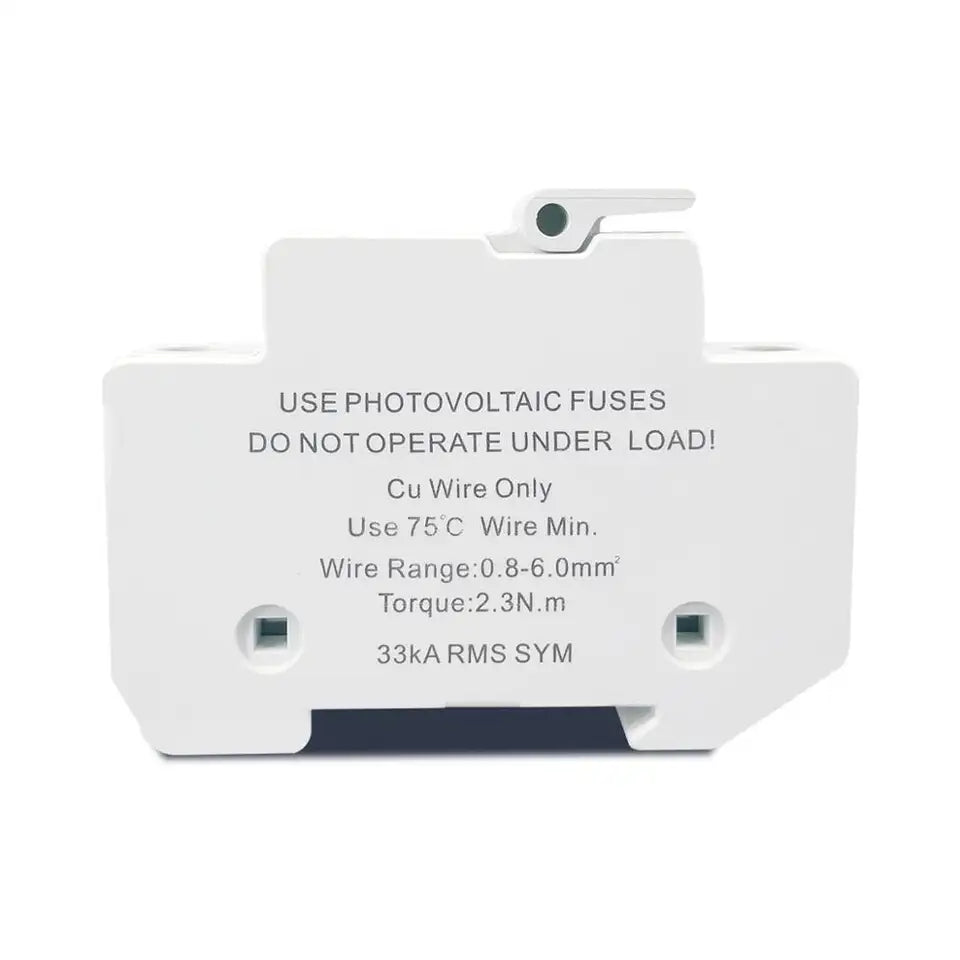

PV Fuse Holder DC 1000V High Voltage for Solar System Protection
PV String Fuses for solar panels - 1000VDC - 32 amp
A range of fuses in a 10x38mm package specifically designer for protection and isolation of photovoltaic strings. The DC fuses are capable of interrupting low overcurrents associated with faulted PV (reverse current, multi-array fault) string arrays.
Applications
Solar Panels, Solar Photovoltaic, DC Strings. ADVICE: Always use fuses on positive and negative terminal on any photovoltaic string rated up to 1000VDC
Electrical Characteristics Rated voltage 1000VDC Fuse support Amps 1A -32A Rated braking capacity 33kA dc Minimum interrupting rating 1.3x In
