Midnite Solar Main Panel Breaker 125A

Midnite Solar

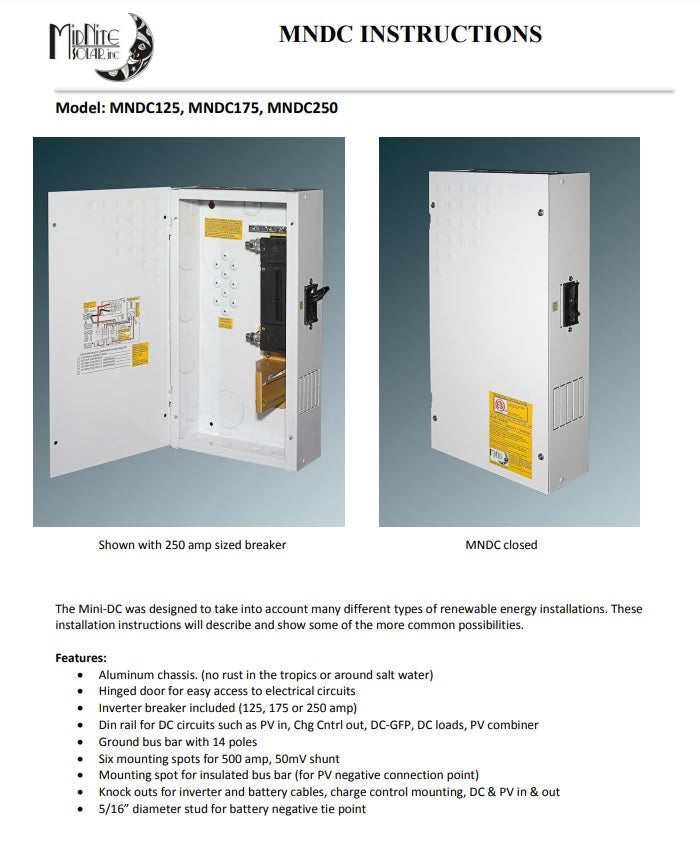

Mini DC Disconnect

An affordable DC breaker box, the Mini DC Disconnect from Midnite Solar includes the following features:

• Din rail to accommodate up to five 125 VDC breakers
• Mounting for shunt and charge controller
• ETL listed for the USA and Canada
• Bonded battery/inverter negative tie point
• Equipment ground bus bar
• Aluminum enclosure with full compliment of conduit knock outs
• Includes 125A / 125VDC breaker Panel Mount
• White powder coated aluminum with 125A/125VDC breaker and 5 dinrail breaker slots & 3 panel mount breaker slots.

Dimensions: 17"H x 9"W x 3.5"D
