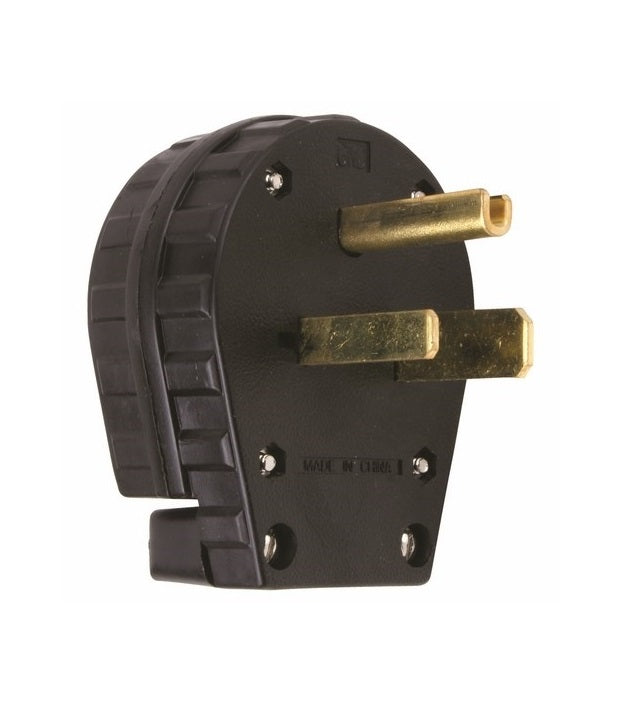

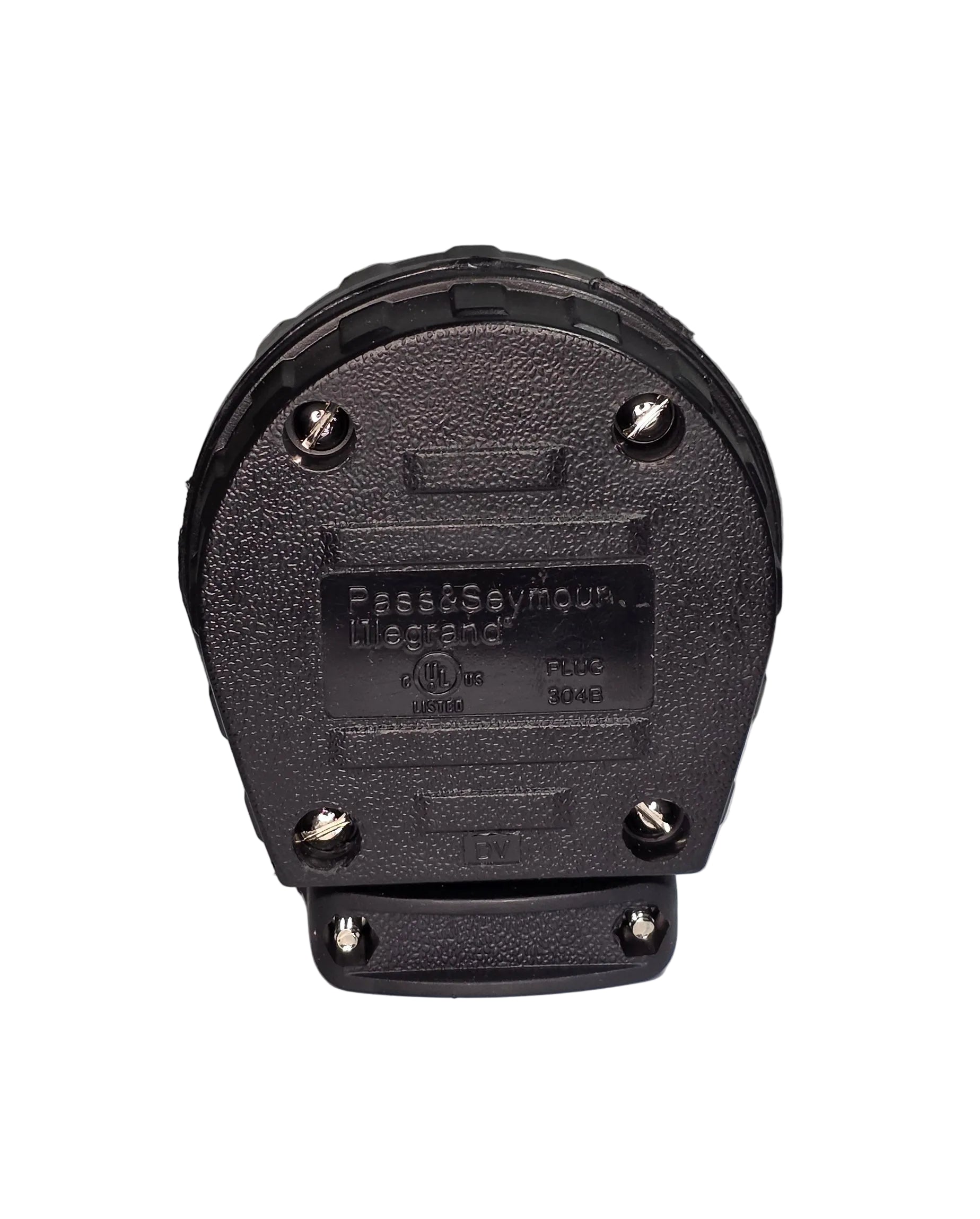

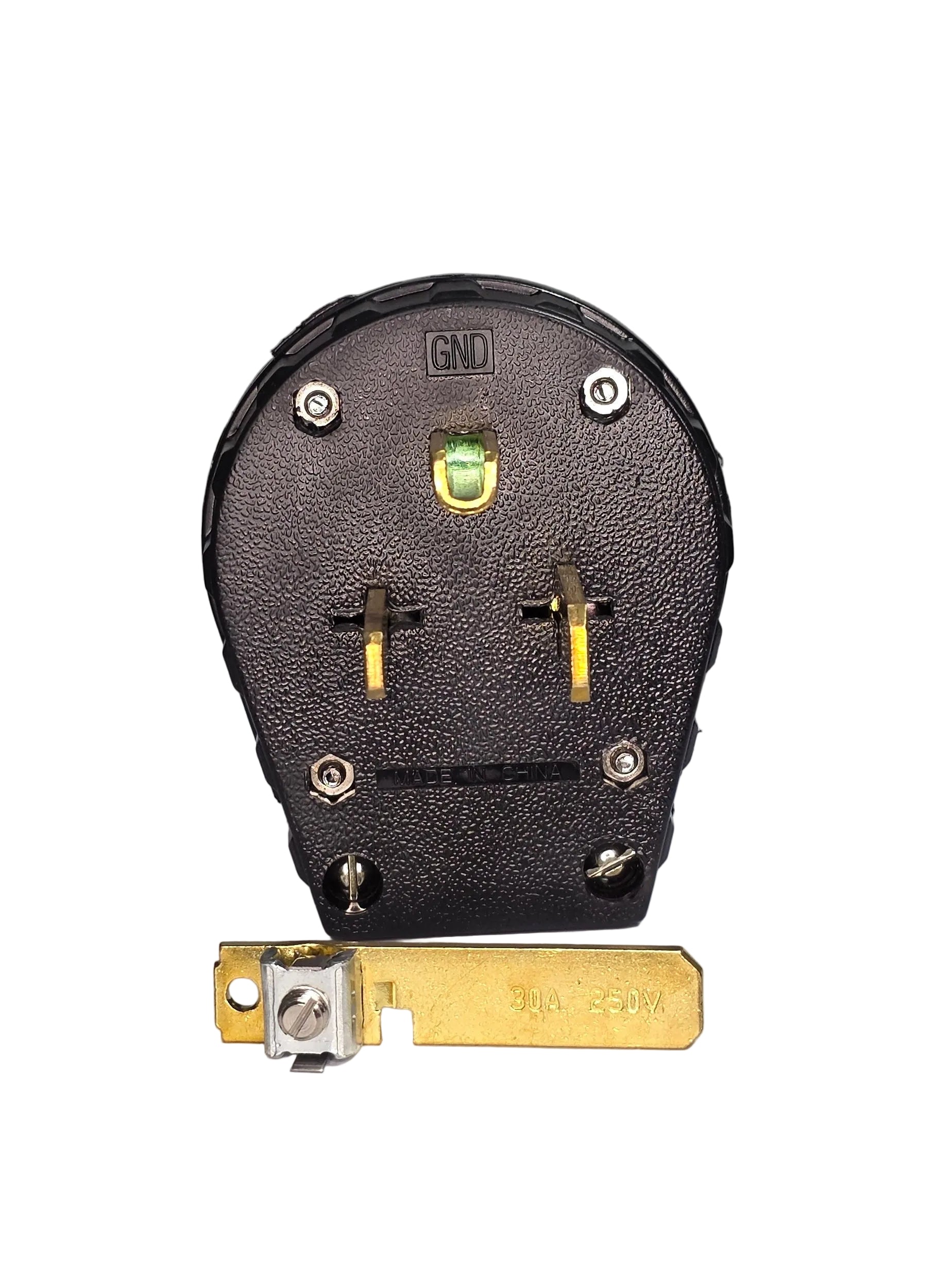

NEMA 6-30P/6-50P 125/250v Plug Macho Legrand

Color:    Black

Cord Size:            0.56 to 1.1 Inch

Approval:            UL 498

Additional Information: RoHS Compliant; Overall Dimension 2.86 Inch Width x 1.4 Inch Depth x 3.43 Inch Height; Applicable Standard NEMA WD-1/WD-6

Catalog Number:              3869

Brand Name:     Pass & Seymour

Type:     Angled

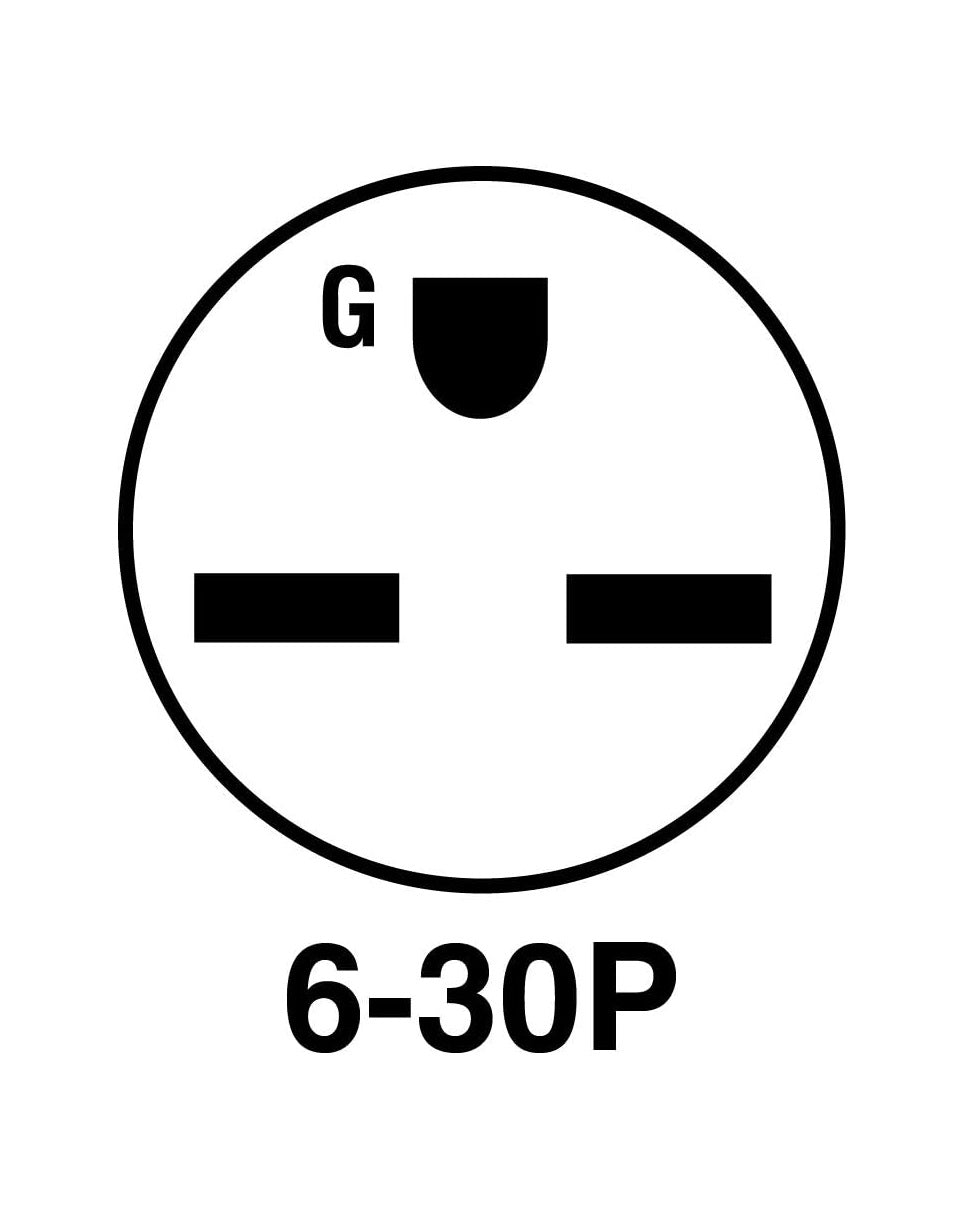

Configuration:   6-30P/6-50P

Voltage Rating: 250 Volt

Current Rating: 30/50 Amp

Number of Poles:            3

Number of Wires:            3

CATALOG DESCRIPTION:  ANGLE CAP 30/50AMP 250V
