Over under voltage AC protective Din Rail 2 Display TOMZN

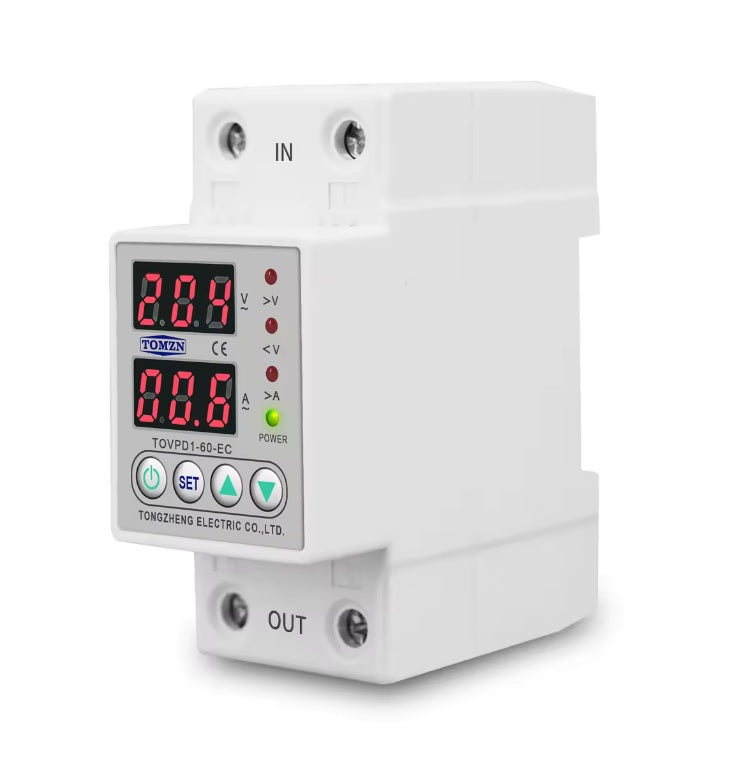

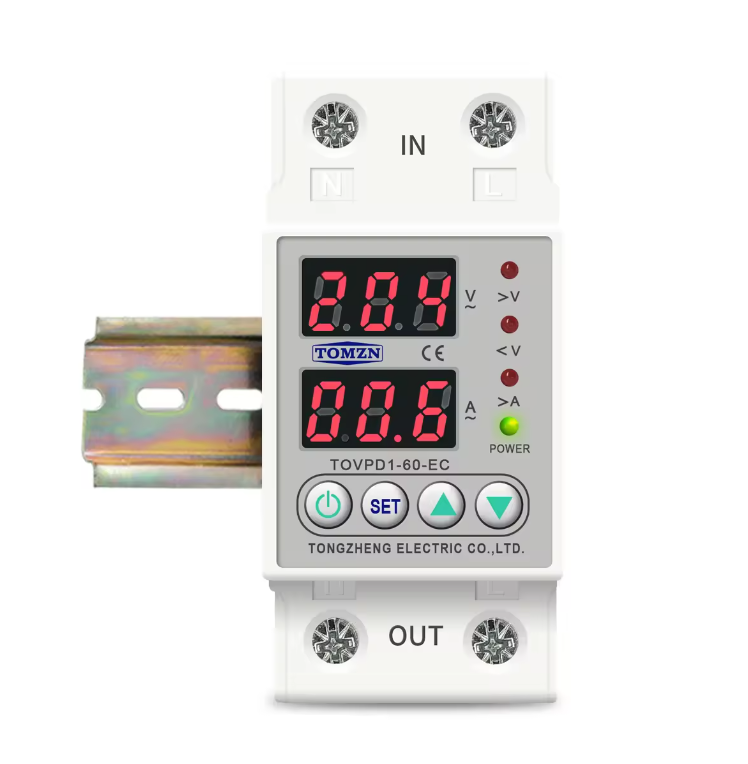

Name: Over under voltage AC protective Din Rail 2 Display TOMZN
Brand: POS Depot
Price: 25.0 USD
Availability: InStock

$25.00

Oferta Agotado

Tamaño 40 Amperes 63 Amperes

Cantidad

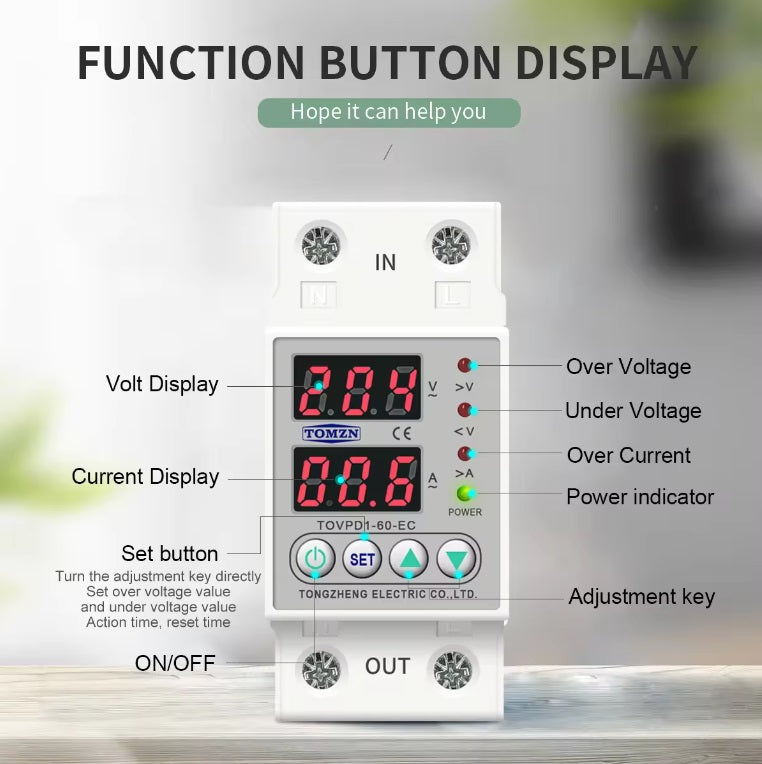

Functions:

1.Over-voltage protection

2.Under-voltage protection

3.Over-current protection

4.Automatic recovery

5.Voltage display(voltage measurement)

6.Current display (current measurement)

7. Voltage calibration: Voltage +-10% adjustable. A13

8. Restore factory settings: press the down button for more than 12s

9. Fault inquiry: Press the UP button from more than 12S

Product Parameters:

1.Model number:TOVPD1-60-EC

2.Power supply:230-240VAC 50/60Hz

3.Max.Loading power:1~40A Adjustable(default:40A)

1~63A Adjustable(default:63A)

4.Over-voltage protection value range:230V~300~OFF(default:270V)

Over-voltage recovery voltage range:225V--295V(default:250V)

Over-voltage protection action time:0.1s~30s(default value:0.5s)

Over-voltage r ecovery delay time:1s~500s(default:30s)

5.Under-voltage protection value range:140V--210V --OFF(default:170V)

Under-voltage recovery voltage range:145V--215V (default:190V)

Under-voltage protection action time:0.1s~30s(default:0.5s)

Under-voltage r ecovery delay time:1s~500s(default:30s)

6.Over-current adjustment range:1-40A (default:20A) 1-63A (default:40A)

Over-current action range:0.1~30 second (default:0.5s)

Over-current r ecovery delay time:1s~500s(default:30s)

7.Power-on delay time:1s~500s(default:10s)

9.Power consumption : <2W

10.Electric machinery life : 100,000 times

11.Installation:35mm DIN rail
