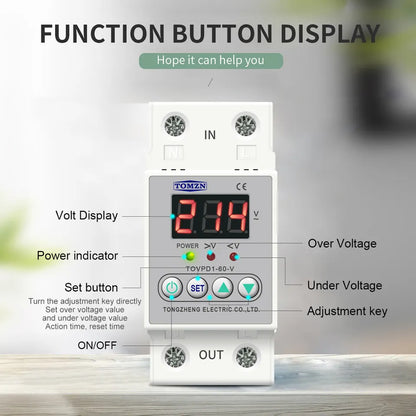

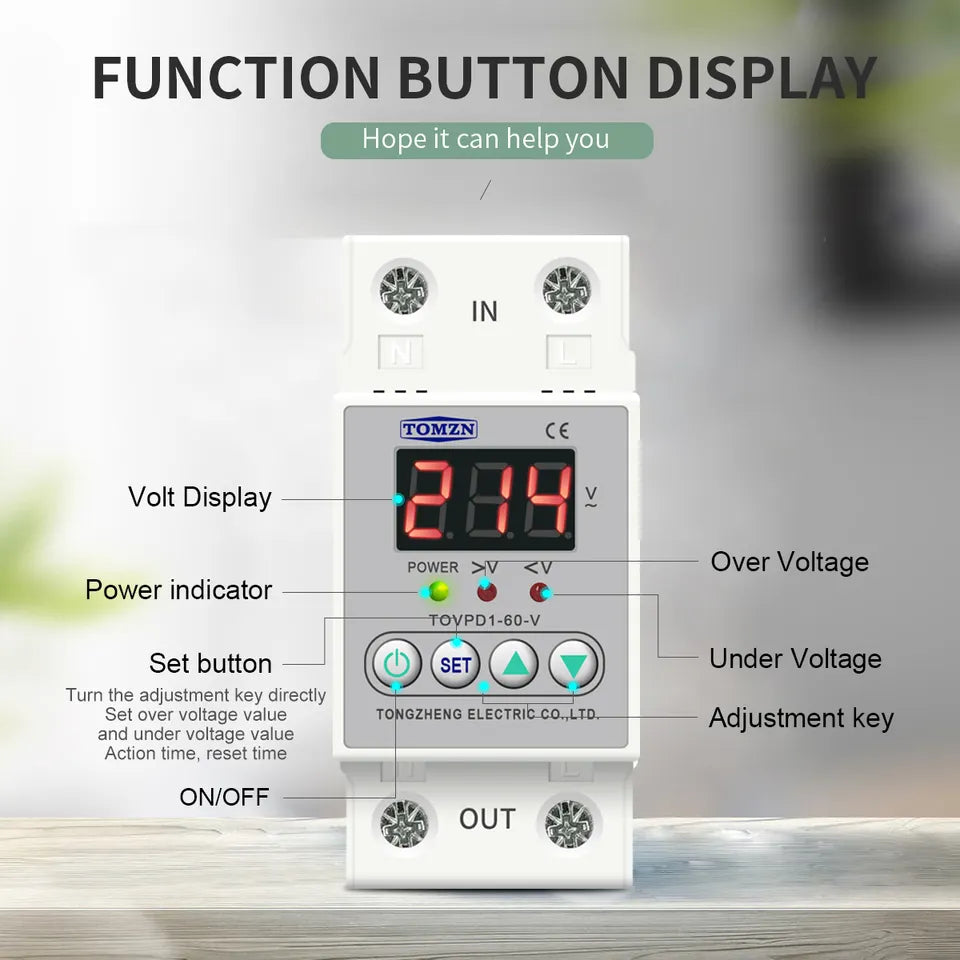

Functions:
1.Over-voltage protection
2.Under-voltage protection
3.Automatic recovery
4.Voltage display
5.Voltage manually calibration
Product Parameters:
1.Model number:TOVPD1-40-V TOVPD1-60-V
2.Power supply:230VAC 50/60Hz
3.Max.Loading power:40A/63A
4.Over-voltage protection value range:230V~300V --OFF(default:270V)
Over-voltage recovery voltage range:225V--295V (default:265 V)
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage r ecovery delay time:1s~500s(default:30s)
5.Under-voltage protection value range:140V--210V --OFF(default:170V)
Under-voltage recovery voltage range:145V--215V (default:175V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltage r ecovery delay time:1s~500s(default:30s)
6.Power-on delay time:1s~500s
7.Power consumption : <2W
8.Electric machinery life : 100,000 times

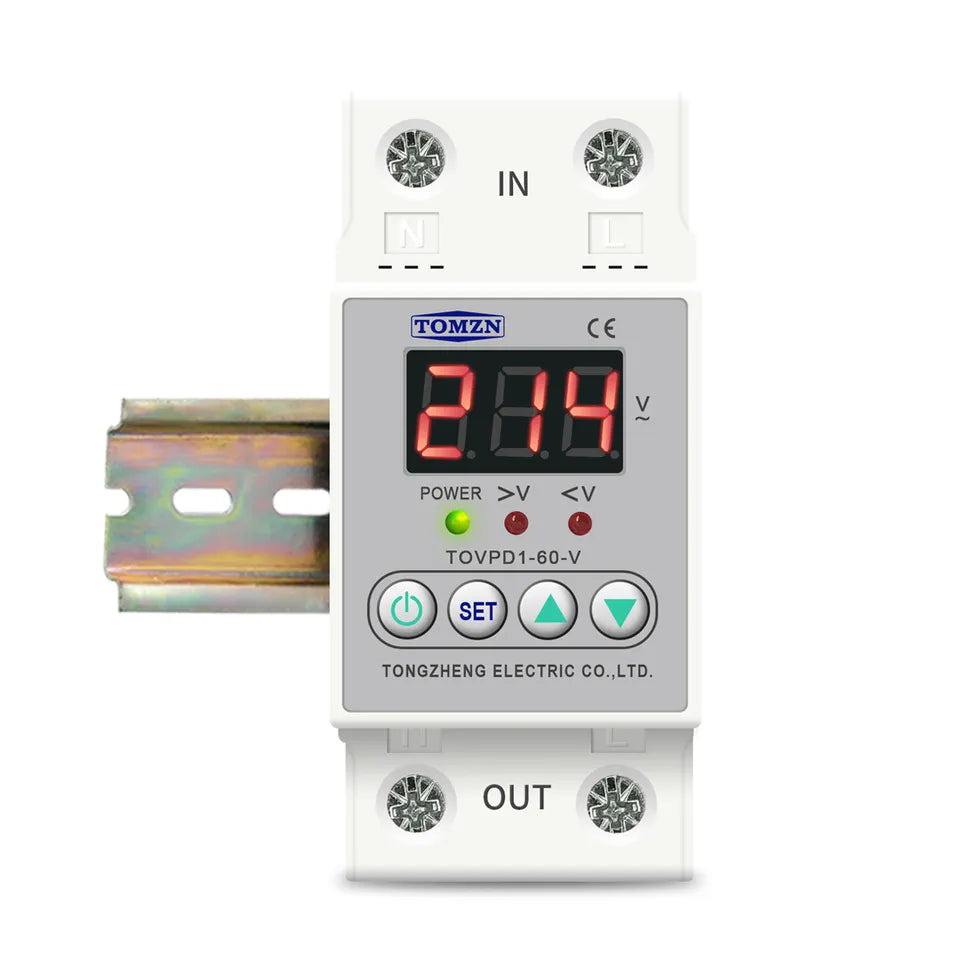

9.Installation:35mm DIN rail
