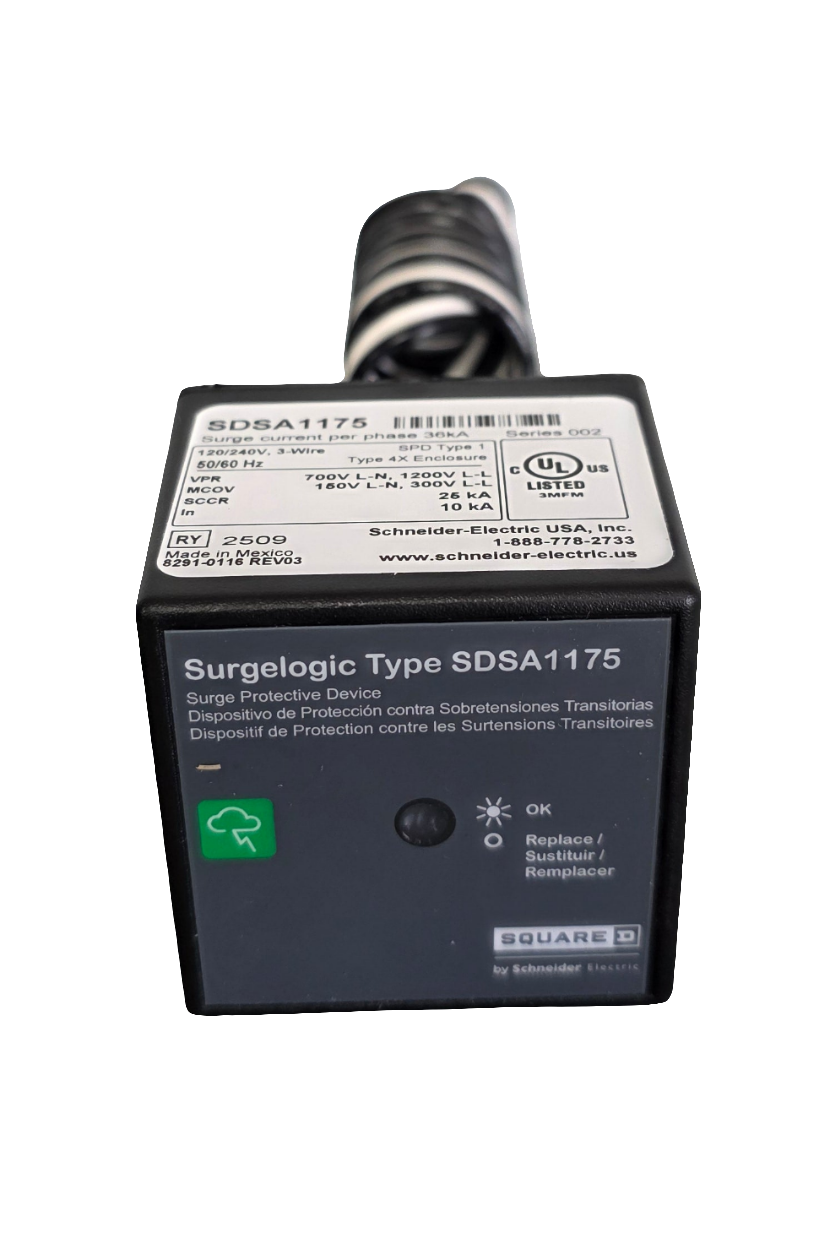

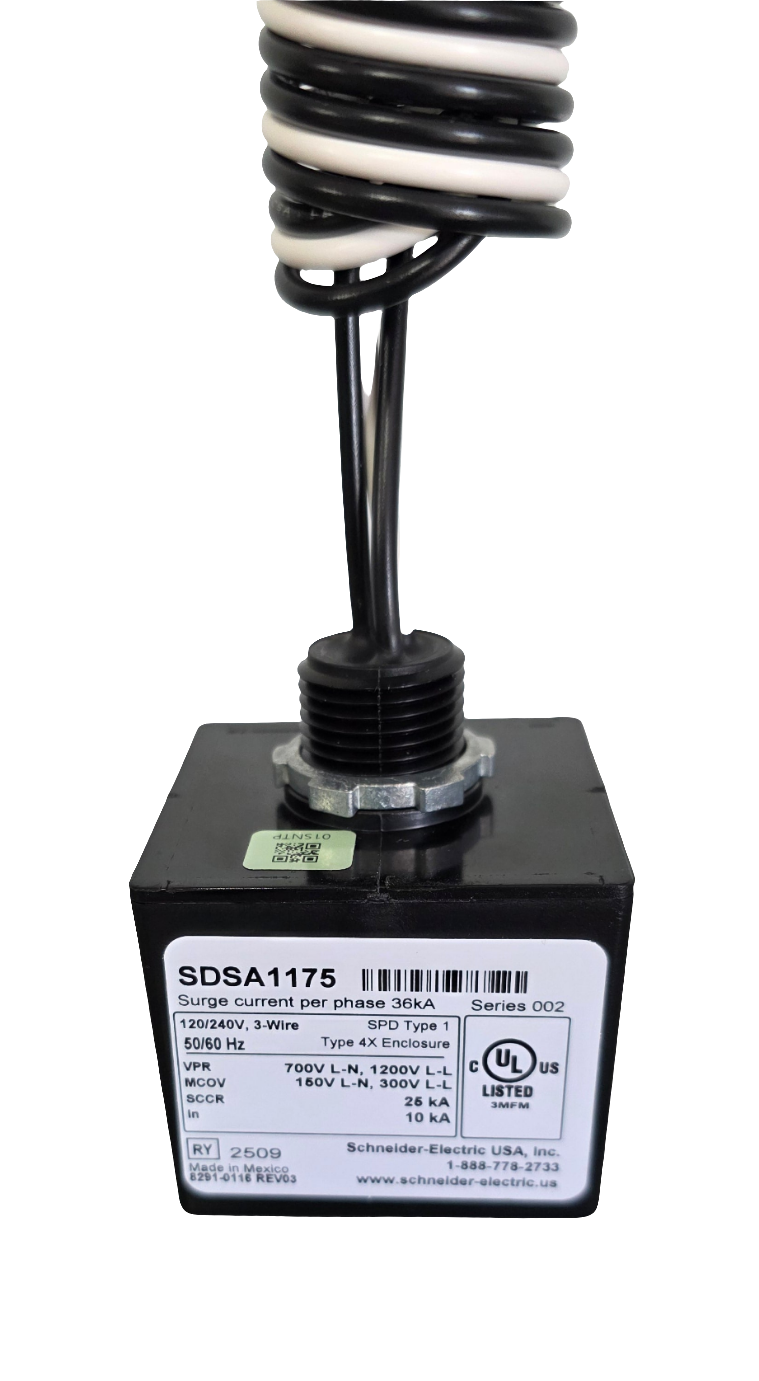

SQUARE D Surge Protective Device SDSA1175

SQUARE D  by Schneider Electric Model: SDSA1175

Surge protection device, Surgelogic, 36kA, 120/240 VAC, 1 phase, 3 wire, 25kA SCCR, NEMA 4X

Product Surge protection device

Range Surgelogic

Complementary

Voltage Rating 120/240 V AC

MCOV 150 V

SCCR 25 kA

Surge Current 36 kA per phase

Nominal Discharge Current 10 kA

Number of Phases 1 phase

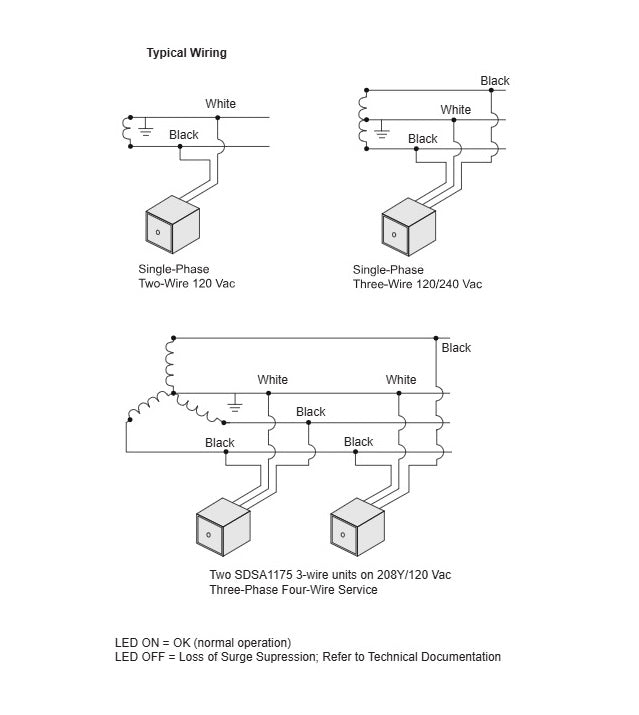

Wiring Configuration 3-wire

Local Signalling Status LED green normal operation

Cable length 24 in (609.6 mm)

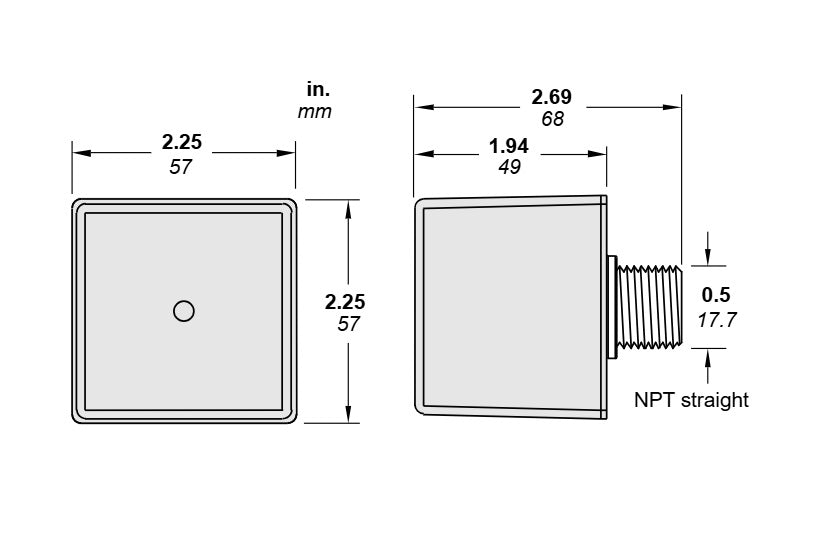

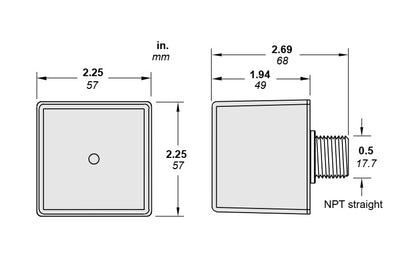

Height 2.25 in (57.15 mm)

Width 2.25 in (57.15 mm)

Depth 2.7 in (68.6 mm)
